DC24V UCS8904 RGBW 16bit 60leds Pixel LED Tapes

The Advantage of UCS8904 RGBW:

• UCS8904 Advantages:
  - Very High PWM rate 4.0KHZ allows for filming the pixels with 60fps appromately.
  - Drive 4 colors LED allowing for tones that were previously hard to achieve with single RGB strip.
   - 16 bits of data, 65536 grayscale for each color makes dimming curves very smooth.
   - High PWM 4.0KHZ rate allows for filming these pixels with cameras up to 60fps
   - RGB and White ( any other single color) can be independently controlled to allows us to create bolder and more vibrant colors than with RGB alone.

  UCS8904 Shortcomings:
   - No Clock data line, only data line restricts refresh rate to be limited by the protocol speed, which will generally be slow.
   - No redundancy in data like the GS8208.

  UCS8904 Cautions:
   - Very Similar with the SK6812 RGBW Protocol / SM16704 Protocol, but couldn't work together with those IC chips.
   - Similar with the UCS2904 IC, but couldn't use the UCS2904 IC program to work with this UCS8904 LED tapes.
   - UCS8904 have same pin define with the UCS2904 that they're available for same PCB, but BOM maybe a little different.
   - UCS8904 chip , couldn't choose the program of the UCS2904. Should be re-programmed.

Product Specifications:

More choice,

• DC5V: 30leds, 60leds

• DC24V: 60 leds, 72 leds , 84 leds, 96 leds and 120leds 144 leds;

• DC12V: 60 leds, 72 leds , 84 leds , 96 leds and 120leds 144 leds;

  Application:

(1) Applicable for automobile and bicycle decoration, border or contour lighting

(2) Widely used for home decoration use, hotels, clubs, shopping malls

(3) Architectural decorative lighting, boutique atmosphere lighting

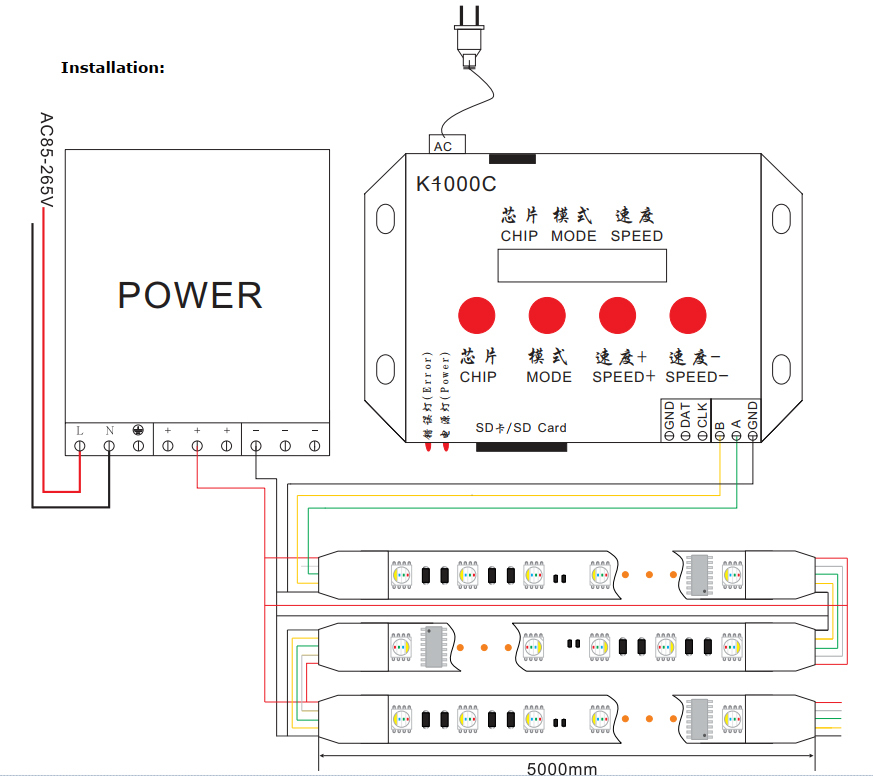

LED Strip Connection Diagram:

NOTE

1. The AC wiring must be connected to the ground wire to prevent electric shock.

2. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.
