Factory-Direct LED Strip and Pixel LED Chip Manufacturer

NEWSTAR LED focuses on LED strips and pixel LED chips, supplying addressable strips, COB strips, neon flex, controllers and accessories to distributors, signage makers and lighting contractors in more than 60 countries.

Years focused on LED lighting

Available product models

Export countries and regions

Inquiry response time

About NEWSTAR LED

LED Strip & Pixel LED Chip Manufacturer

Our product range covers SK6812, WS2812B, WS2815, APA102, APA107, HD107S, HD108 and DMX512 solutions in DC5V, DC12V and DC24V, with 5050, 3535, 2835, 2020 and COB package options.

Customization is part of daily production: special voltage, pixel density, color temperature, CRI level, jacket color and connector type can be arranged based on your project drawing.

In-house pixel chip and driver circuit development
DC5V / DC12V / DC24V with SPI and DMX512 options
Aging test on every reel before packing

Learn More

What Buyers Say

Feedback from distributors, signage makers and lighting contractors we supply.

“The WS2815 strips kept consistent color across 400 meters of facade outline. Signal amplifiers were recommended before we ordered, which saved us a lot of commissioning time.”

Project Manager

Facade lighting contractor, Germany

“We needed a custom 24V COB strip with Ra95 for showroom profiles. Samples arrived in one week and the bulk order matched the sample exactly.”

Purchasing Director

Lighting distributor, United Arab Emirates

“Neon flex bending quality is stable and the silicone jacket has not yellowed after a year of outdoor signage use.”

Owner

Signage manufacturer, United States

Latest Articles

2026 Hong Kong Autumn Lighting Fair

DMX or SPI? How to Choose the Right Addressable LED Tape

Selecting an addressable LED tape depends on voltage, pixel density, signal protocol and installation length. This guide compares DMX512 and SPI so you can specify the correct solution.

DMX LED Tape Compared with SPI LED Tape

Both DMX512 and SPI addressable tapes offer unique advantages. Understanding their differences in signal, addressing and cost helps avoid specification mistakes.

CRI and Color Temperature: A COB LED Strip Selection Guide

CRI and color temperature decide how a space feels. This guide explains Ra80, Ra90, Ra95 and Ra97 options and how to match color temperature to applications.

NEWSTAR Expands Pixel LED Chip Production Line

A new SMT line and additional aging test racks increase monthly capacity for addressable strips and pixel chips, shortening lead time for repeat orders.

Should I choose DMX512 or SPI for my project?

SPI (WS2811, WS2815, SK6812, APA102 family) is cost-effective and has a large effect library, suitable for signage, decoration and short runs. DMX512 uses a balanced differential signal that stays stable over long cable runs and connects directly to professional lighting consoles, so it is the standard for facade and landscape engineering projects. If your installation is longer than 20 meters or requires console control, specify DMX512.

What is the difference between DC5V, DC12V and DC24V strips?

DC5V is normally limited to about 5 meters per feed point and is common for small pixel products. DC12V works well up to 10 meters and is widely used for WS2815 pixel strips. DC24V supports runs of 15 to 20 meters with less voltage drop, which makes it the preferred option for COB strips, long cove lighting and engineering projects.

Which waterproof rating do I need for outdoor use?

IP20 is for indoor dry locations. IP65 has a silicone or epoxy coating and suits semi-outdoor and bathroom areas. IP67 uses a silicone tube and is standard for outdoor signage and facade outline. IP68 is fully potted for continuous immersion such as pools and fountains. Higher protection reduces heat dissipation, so derate the current or choose a lower density version for outdoor use.

What are your sample policy and minimum order quantity?

Standard samples are available for evaluation and the sample cost is refundable against a confirmed bulk order. Custom samples are quoted separately based on tooling and material, with a typical lead time of 3 to 7 working days. For standard models the MOQ is usually one reel (5 meters) for trial orders, with bulk pricing starting from larger quantities.

What warranty and quality records do you provide?

Standard warranty is 3 years for LED strips and pixel chips under normal use conditions. Every reel goes through AOI inspection after reflow and an aging test before packing, and batch level test records are available on request. For warranty claims we provide replacement parts or products after confirming the failure cause.

Contact

Tell us your project requirements — voltage, pixel density, color temperature and quantity. Our engineering team will propose a matching solution.

+86 138 2520 5052
jason@newstarleds.com
7/9F 1Building Xinhuiyuan Chanyeyuan, Xinyuan 1st Road, Dalang Town Dongguan 523770 GuangDong China

Send Inquiry

Request a Quotation

Send your specification through the inquiry form and receive an engineering reply within 24 hours on working days.

Open Inquiry Form

500+

Available models

60+

Export countries

Factory-Direct LED Strip and Pixel LED Chip Manufacturer

Featured Products

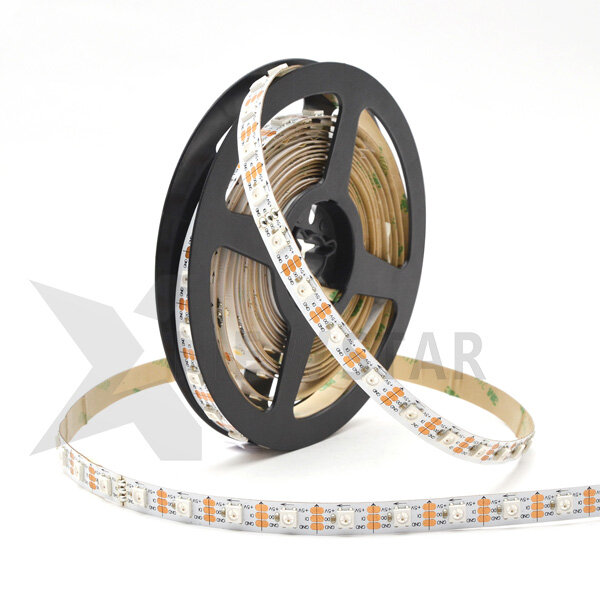

DC5V WS2812B Addressable LED Strip 60LED per Meter

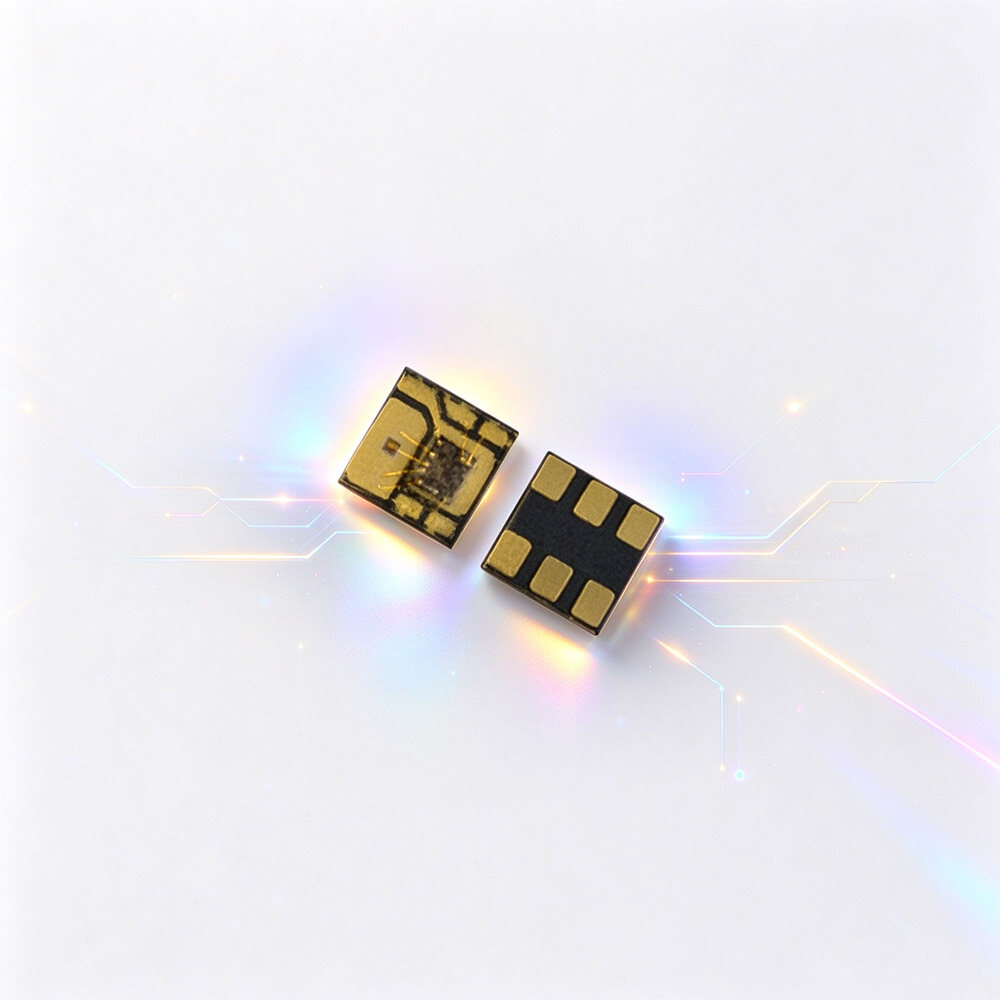

HD107S 2020 LED Chips NS107S 2020 Addressable LED SMD Dotstar 2020 Pixel LED diodes

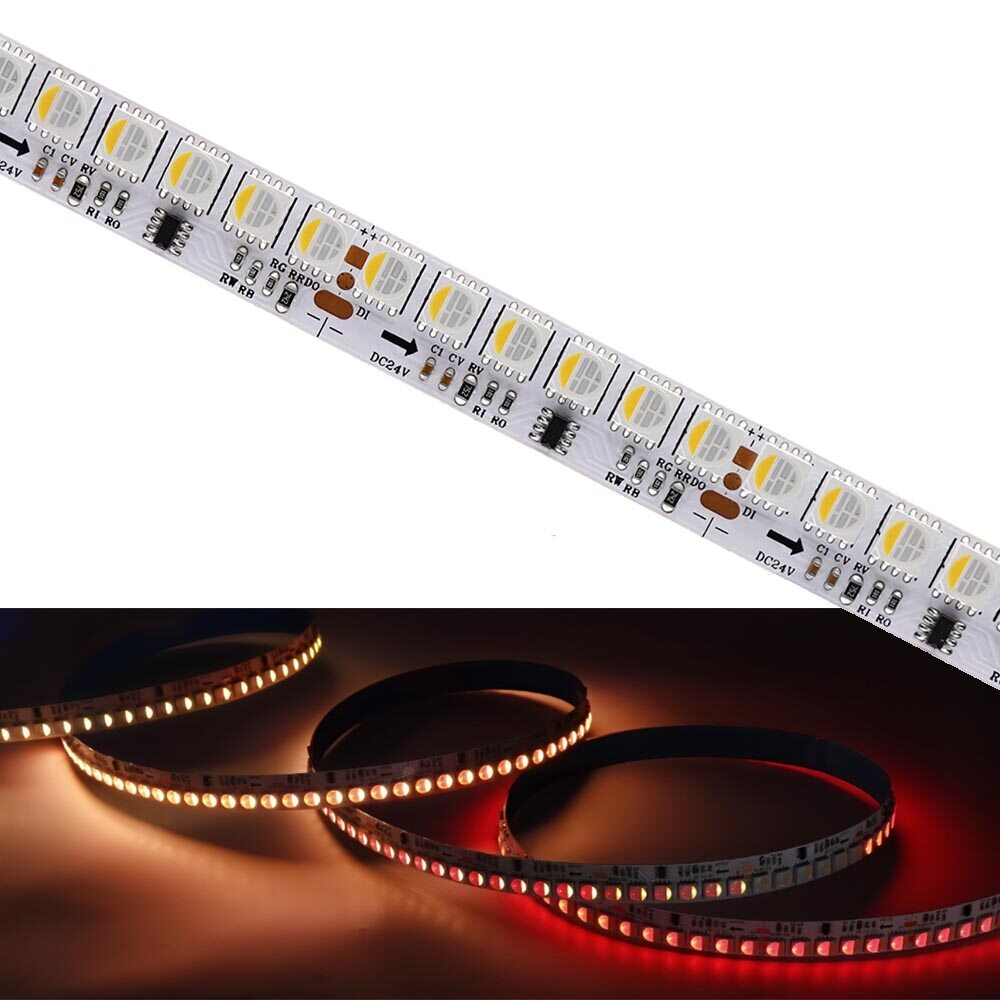

DC24V WS2814 RGBW 144leds/m 24pixels/m Addressable LED Strip

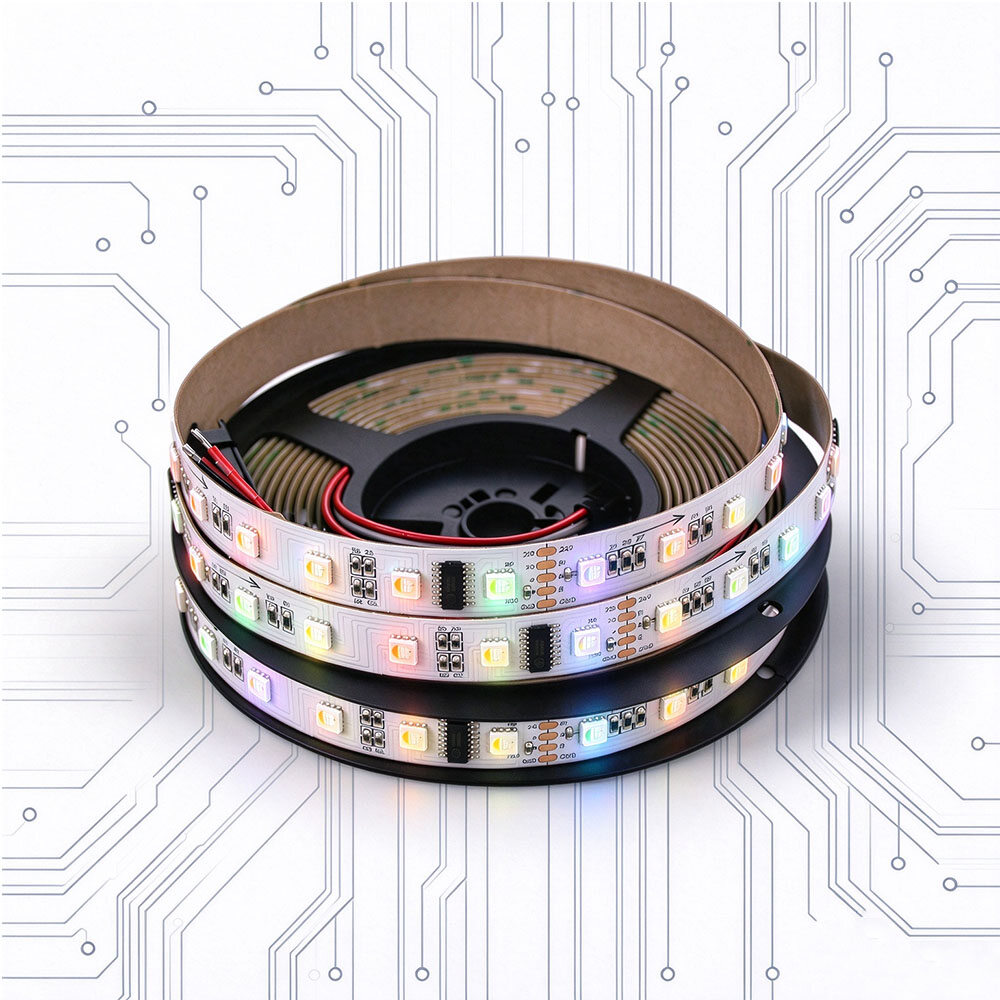

DMX512 RGBW Addressable LED Strip for Facade Outline

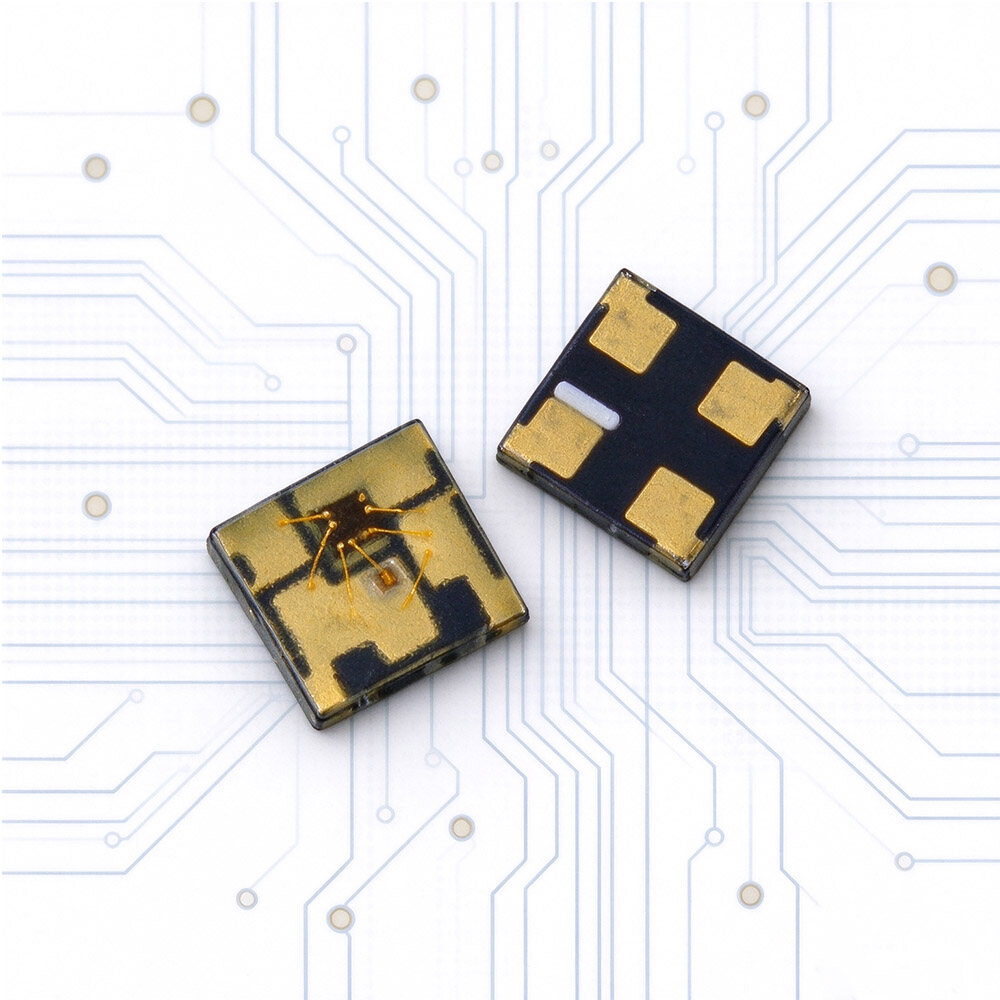

SK6812 HD8812 2020 LED Chip

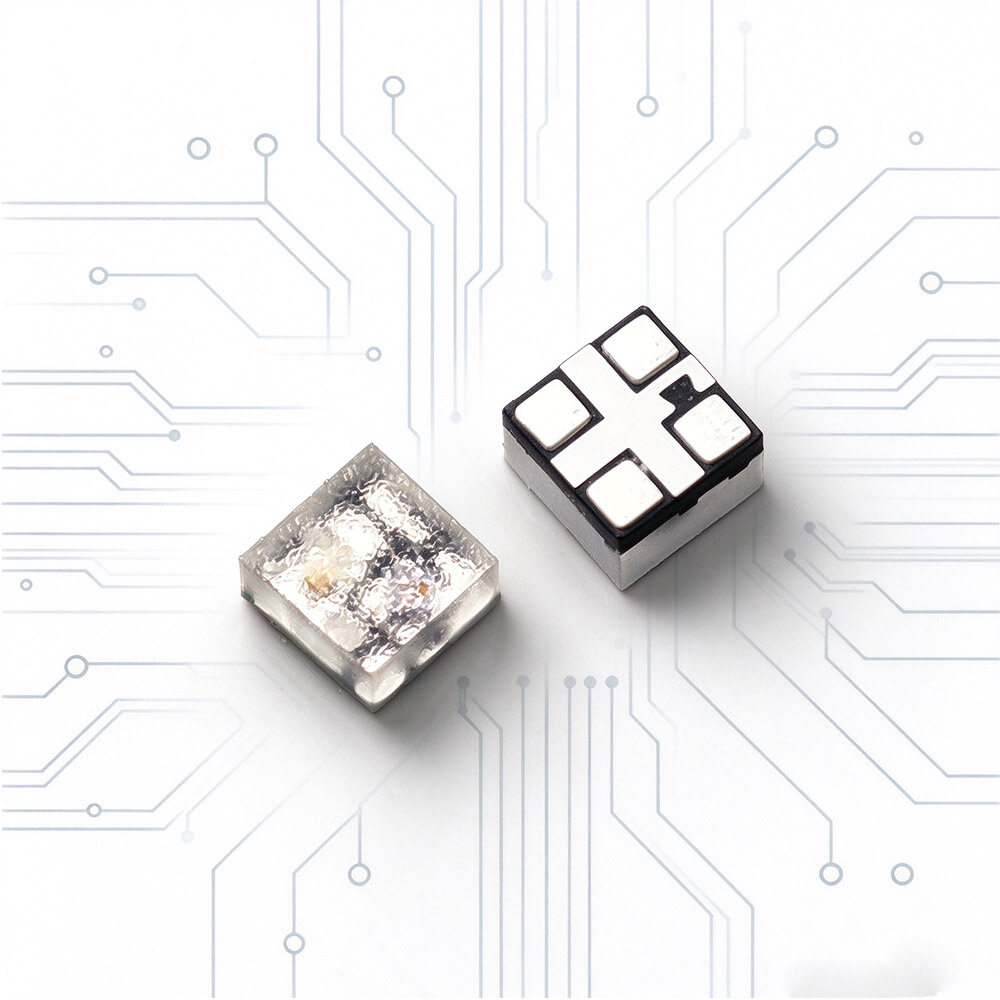

SK6812 1010 Pixel LED Chip WS2812B HD8812

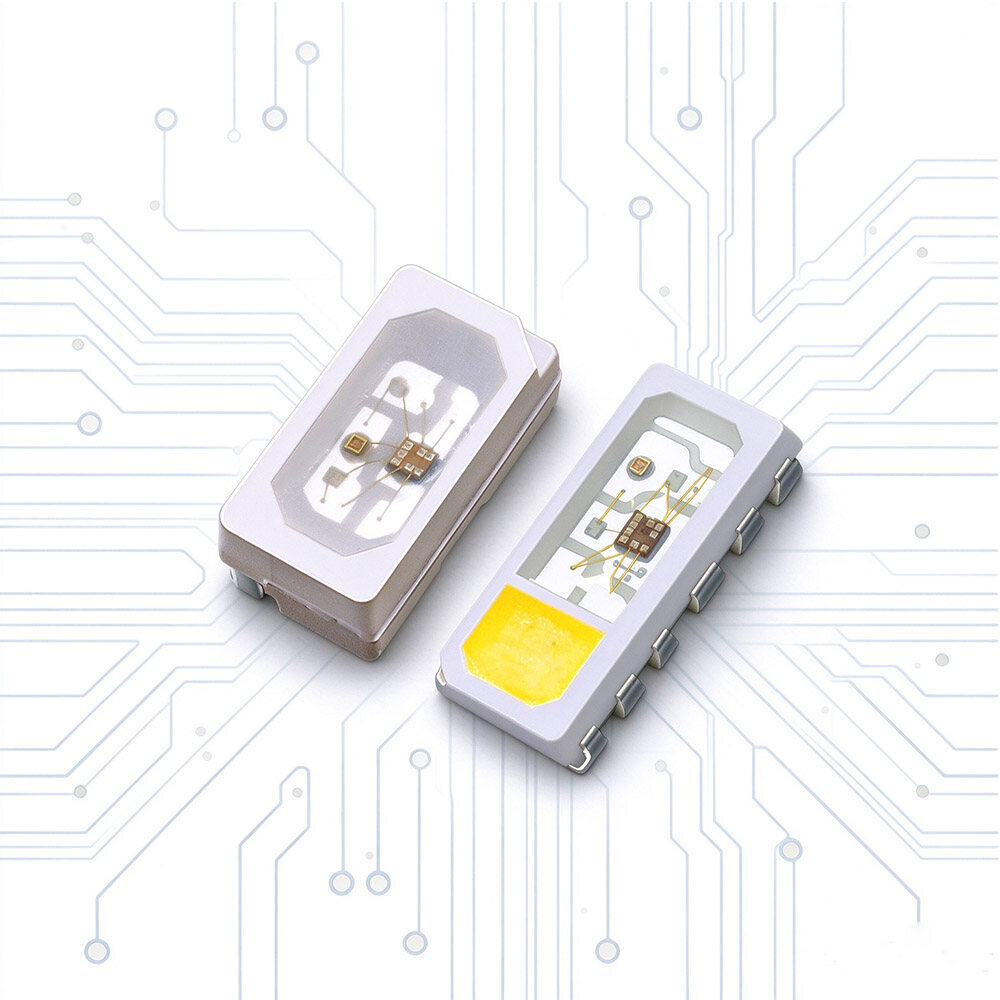

SK6812 4020 RGB Pixel LED Chip 5V 12V

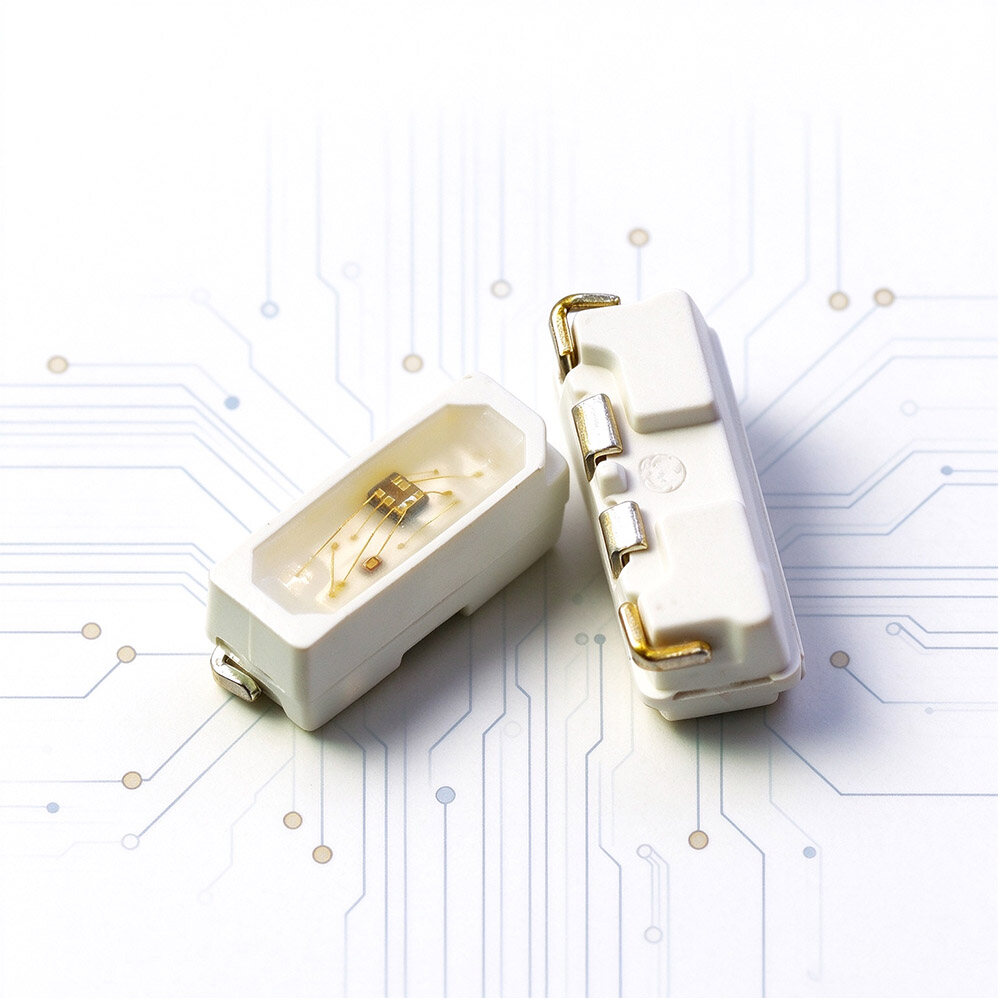

SK6812 3512 Side view Pixel LED Chip WS2812B
